Description

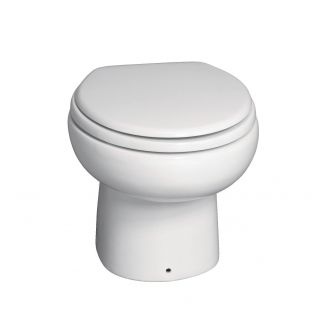

Specially designed for all boats, SANIMARIN SFA toilets are particularly appreciated by professionals and yachtsmen around the world for their great reliability, the water and electricity savings they generate and their comfort of use.
All models shown below are equipped with the COMFORT control system.
The flush mechanism is triggered by a two-position switch that allows either rinsing or grinding / pumping. The duration of each cycle is controlled by the user, without electronics. For operation with seawater (except the Maxlite model, equipped with a self-priming pump), it is necessary to add a seawater pump E10223 for example (Attention: the intensity of the pump must be less than 17A ).
Use :
1 -RINSE: (Add Water) Recommended water level: 1/2 bowl
2 - EVACUATE (Pump out)
3 - RINSE: (Add Water) to leave a permanent water seal at the bottom of the bowl
Note 1: In rough seas, drain the bowl to avoid spraying (with pump out position)
Note 2: No automatic cycle
- Quiet operation - Optimized dimensions - All the system integrated in the foot of the WC - Intensity absorbed: 12 V (300 W) 25 A - Horizontal evacuation: 30 m - Lift height: 3 m - Minimum rinse water pressure: 1.7 bar - Weight: 19 kg - Ceramic bowl Installation on a 'coaming'. Available in 24 V (360 W) 15 A on request
