Description
Product Overview:

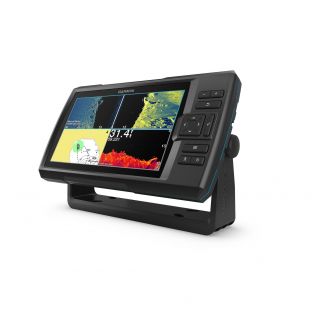

Watch fish and structure in colourful detail with the STRIKER Vivid series of fishfinders. This easy-to-use unit offers a high-performance fishfinder module and now features 7 new high-contrast colour palettes to make it easier for you to see what's beneath the surface with clear, perfectly detailed images.
Main functions:
- Traditional 2D sounder module, CHIRP (ClearVü) mode (SIDE VÜ) and GPS function without card reader.
- Brighter 7.0' screen: sunlight readable and a very intuitive user interface.
- High Sensitivity GPS: The built-in GPS antenna allows you to mark the position of your fishing spots so you can return to them later. Quickdraw Contours: Free, simple and instantaneous, Quickdraw Contours lets you instantly create detailed fishing maps with bathymetric curves every 30cm. The sounder's internal memory can store up to 8,000 km² of recordings.
- WIFI compatible with the ActiveCaptain application.
- Ideal for use with float tubes, kayaks and other boats.
Important information:
The STRIKER VIVID 7SV sounder has a GPS function but no map reader. It is therefore not possible to insert a map in this device. Compatible with the free ActiveCaptain Wifi application for saving and sharing Quickdraw Contours recordings and updating the software.
Sounder/GPS functions:
- Traditional 2D sounder function with 200khz frequency.
- Function (CLEAR VÜ) with frequencies CHIRP 435-475 kHz and CHIRP 800-840 kHz
- Function (SIDE VÜ) with frequencies CHIRP 435-475 kHz and CHIRP 800-840 kHz
- Screen size: 7.0'.
- Resolution 800 x 400 WVGA.
- Quickdraw Contours function YES.
- Compatible with the ACTIVECAPTAIN application YES.
- Supplied with probe : GT52HW-TM 200/455/800khz (ref : 010-12405-00)
- Power : 500 W (traditional) 500 W (ClearVü/SideVÜ)
- Maximum depth (with probe supplied) : 244 m (traditional) 76 m (ClearVü) 152 m L/R (SideVü)
- Waypoints : 5 000
- Product dimensions : 23.5 x 14 x 5. 8 cm
In the STRIKER Vivid 7SV box:
- STRIKER VIVID 7SV
- Garmin GT52HW-TM 200/455/800khz probe (ref: 010-12405-00)
- Transom probe support (ref : 010-12006-00)
- Power/data cable (ref: 010-12199-04)
- Tilt/pivot mounting bracket (ref: 010‐,12439‐,01) and documentation.
Advice Power supply:
A lead-acid battery of 12v for 12Amp minimum is recommended for good autonomy. The end of the wires at the end of the sounder power cable are stripped and it is necessary to adapt and obtain lugs (not supplied with the sounder) to connect it to the battery.
OPTIONAL ACCESSORIES:
- OPTIONAL = Striker Plus 7SV/VIVID 7SV flush mounting kit (ref : 010-12440-02)
- OPTIONAL = Striker Plus 7SV/VIVID 7SV user data sharing cable (ref : 010-12234-06)
- OPTIONAL = Portable Striker Plus 7SV/VIVID 7SV kit (ref: 010‐,12462‐,01)
- OPTIONAL = Striker plus 7SV/VIVID 7SV protective cover (ref: 010-12441-02)
Screen 7', power 500 W, comes with probe TA (GT52-TM).
