Description

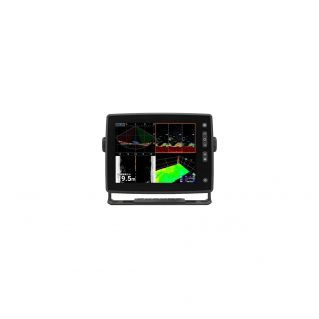

Modular single-function touchscreens and buttons:
-For DFF3D multibeam sounder, DRS4DL+ sounders or radar and black box sounders
-Available in 10'' and 12'' screen
-Meet every need from recreational boating to fishing and utility boats.
-Modular display mode: portrait or landscape orientation very fast and without tools
-Modular configuration: Connect 2 displays with 2 sensors at the same time or 2 displays with one sensor via the central unit to be able to view your desired modes at the same time with a single configuration. Available configurations: 2 sensors with 2 displays / 1 sensor with 2 displays / 1 sensor with 1 screen. (*2 display units maximum *1 radar unit maximum for each configuration)
-Interface: Serial: 2 ports, NMEA0183 / LAN: 1 port, Ethernet 100Base-TX, RJ45 / USB: 1 port, USB2.0 (Type A), for maintenance / NMEA2000: 1 port / HDMI output: 1 port, 1280x768 (HD)
-IP25 sealing
- 12-24V power supply
-Weight: 2.4 kg (10'') / 2.6 kg (12'')
-Delivered without probe
