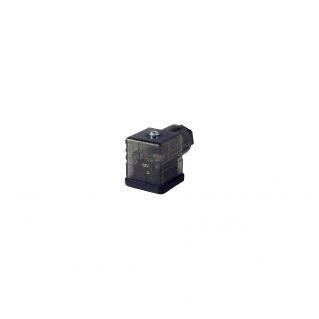

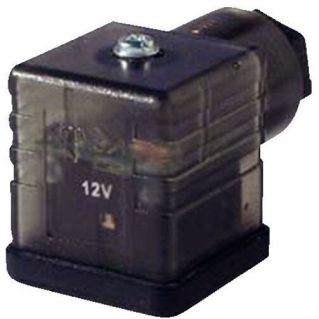

Ecopilot 12V Control Unit — Lecomble & Schmitt
Inboard autopilot from Lecomble & Schmitt. Control unit allowing reduction of the autopilot solenoid valve consumption from 30Ah per day to 5Ah.
Display and Indicators
- 12V power supply, internal consumption 0.01 A, output current at engagement 2.2 A max, switching delay 0.2 s, IP65 rating, LED power indicator.
Features and Technologies
- Its function is to allow, for a brief moment, the current necessary for solenoid valve engagement to pass through.
Power and Consumption
- Acts on the solenoid valve that engages the hydraulic autopilot, a solenoid valve that represents a significant part of the autopilot's overall consumption.
Compatibility
- The current is then significantly reduced, but remains sufficient to ensure proper operation.
Usage Recommendations
Installation by a professional: the actuator must be aligned with the rudder axis. Compass calibration is essential at the end of installation.
Technical characteristics
| Angle | 70° |
|---|---|
| Torque | 100 |
| Weight | 0.035 kg |
| Voltage | 12 V |
| Product Brand | Lecomble & Schmitt |
