M1815 Furuno

Model 1815 — Furuno

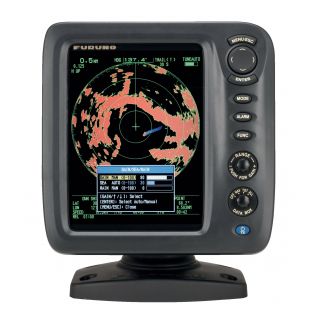

Marine radar from the Furuno brand. The 1815 radar is an 8.4' color LCD radar designed for pleasure boats and fishing vessels.

Screen and display

• The waterproof screen makes it ideal for outdoor installations.
• The high clarity of the display allows you to recognize the echoes around you at a glance.
• Useful display: 128.2 (L) x 170.9 (H) mm.
• True View mode: Realistic view
  Pivot mount bracket to adjust display angle.

Performance

• Even in poor visibility due to fog or rough weather, the radar displays detailed images of the coastline and short and long-range targets.

Features and technologies

• The high sensitivity of the sensor allows you to acquire targets of ships, buoys and other objects on the water surface and on the coasts.
• 15 m radome cable.

Power and consumption

• Compact 4 kW radome antenna, max consumption 38W.
• Power supply: 12-24 V / 3.2-1.6 A.

Size and waterproofing

• Equipped with the high performance you expect from FURUNO products, this radar is also very easy to use and its controls are intuitive.
• This excellent short-range visibility is due to narrow pulse widths and dual bandwidth.
• Fast Target Tracking™ (TT): Quick target acquisition / User-programmable function keys.

Usage advice

Install as high as possible to maximize optical range. Avoid proximity to VHF and GPS antennas to minimize interference.
