Description

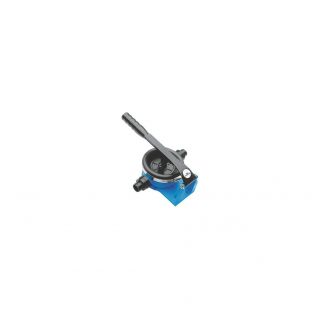

Space-saving bilge pump made of plastic.
Stainless steel metal parts. Easily removable diaphragm.
Flat mounting on floor or bulkhead.
8 possible positions for suction and discharge hoses.
The pump is supplied with 2 Ø 25 mm nozzles.
- Flow rate: 22.5 L/min (in accordance with ISO 15083: 45 strokes/min at 1 m height and 10 kPa pressure).
- Maximum suction and discharge height: 3 m.
- Weight: 0.500 kg.
- Starting diameter of hoses: 25 mm.
The pump is easily serviced by disengaging the lever, then releasing the body from the baseplate by a quarter turn. When fitting, take into account the travel with the lever in the up position.
