NavPilot 300 Furuno

NavPilot 300 — Furuno

Inboard autopilot from Furuno brand. Autopilot for motor boats with an algorithm developed from the NavPilot700.

Display and interface

• Identical design to FI70 displays and equipped with an intuitive wireless GC-001 remote control via Bluetooth.
• 4.1' color screen, IP56 waterproofing, Stby, Auto, Dodge, Turn, Nav, FishHunter functions.

Performance

• Route Smoothing™ reduces boat speed before course change at waypoint.

Functions and technologies

• Certified Volvo IPS
• SABIKI mode, the autopilot controls the boat's stern drift.
• Rudder movements will be managed by the autopilot.

Connectivity and interfaces

• NMEA2000 connectivity (direct connection with NavNetTZT(2) and FI70).

Power supply and consumption

• Simply manage power and propulsion direction (throttle and gear) to keep the boat in position.

Compatibility

• SABIKI™ locking controls both rudder and throttle to maintain the vessel's course, freeing the fisherman to focus 100% on jigging and other vertical fishing techniques
• Speed, balance, sea state and wind are parameters that the Navpilot uses to correct course deviations in real time.
• All these parameters are stored in the autopilot's internal memory and optimized for perfect control of your boat.
• This leaves you with one hand free to focus on fishing actions.
• FishHunter function with compatible Suzuki engines.

Size and waterproofing

• Point Lock™ maintains a stationary boat position by controlling rudder and throttle, counteracting wind and current effects that constantly work to drift the boat.
• Wireless GC-001 remote control.

Kit contents

• A partnership between Furuno and Suzuki offers new FishHunter Drive™ functions:

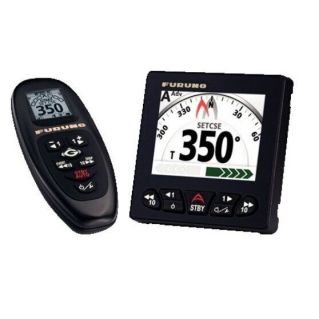

  Pack contents: Indicator, calculator, remote control, Minigyro PG700 compass and reversible unit RV112V.

Usage recommendations

Professional installation: the cylinder must be aligned with the steering axis. Compass calibration essential at end of installation.
