Description
AIS Receiver — NASA

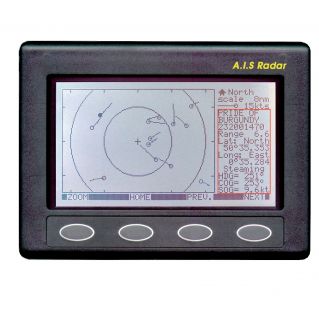

NASA AIS receiver. Dual-frequency AIS receiver with backlit screen.
Screen and Display
- All ships equipped with AIS are displayed on screen with bearing relative to North.
- Each ship displayed on screen can be selected to display its name data and MMSI number, course, speed, distance and position.
Performance
- Range of 1 to 32 nautical miles.
Connectivity and Interfaces
- GPS position via NMEA 0183 input.
Power Supply and Consumption
- Very low consumption.
Compatibility
- Optional mounting bracket (N50049).
Size and Waterproofing
- Dimensions: 150 x 112 x 42 mm.
Usage Tips
The AIS receiver must be connected to a compatible plotter or software for target display. Verify NMEA output compatibility with the receiving equipment.
Technical characteristics
| Height | 112 mm |
|---|---|
| Supply voltage | 10-30V |
| Consumption | 50 mA |
| Interface | NMEA0183 |
| Width | 42 |
| Length | 150 mm |
| Model | AIS NASA |
| Product Brand | Nasa |
