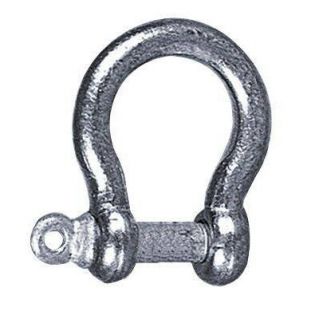

Galvanized Lyre Shackle

Mooring device. There are different shackle shapes.

Composition and material

• It is a forged steel piece that consists of a shackle whose shape may vary (straight, lyre, round, U).

Functions and technologies

• Each shackle has a specific function.
• It closes with a movable pin.
• The pin is either a bolt or another more elaborate system.
• This tool is used to connect a chain or rope with different objects where vertical or horizontal traction must be applied.
• This application is generally temporary.
• This model of shackle is a lyre-shaped model.
• Be careful when using shackles where safety is at stake and regular monitoring is difficult.

Supply and consumption

• In this case, it is better to use stamped galvanized shackles.

Dimensions and sealing

• It comes in several diameters depending on your needs and the working loads to be applied.
• Technical specifications:
  Model diameter 6mm
  Quantity: per 2
  CU: 100kg
  CR: 400kg
  Model diameter 8mm
  Quantity: per 2
  CU: 200kg
  CR: 400kg
  Model diameter 10mm
  Quantity: per 2
  CU: 320kg
  CR: 1280kg
  Model diameter 12mm
  Quantity: per 2
  CU: 520kg
  CR: 2080kg
  Model diameter 14mm
  Quantity: single
  CU: 680kg
  CR: 2720kg
  Model diameter 16mm
  Quantity: single
  CU: 800kg
  CR: 3200kg
  Model diameter 20mm
  Quantity: single
  CU: 1100kg
  CR: 4400kg
