Description

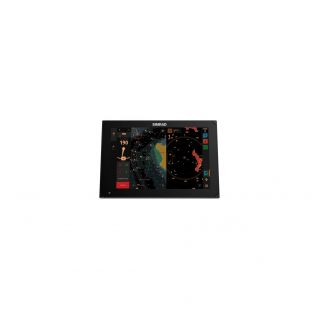

Add a new dimension to your experience with the Simrad® NSX™ intelligent chartplotter and fishfinder. ,The innovative modern interface with powerful navigation with C-MAP® support will let you see like never before, our IPS touchscreens capturing every detail. The NSX is fully equipped with integrated fishfinder, radar and autopilot systems. With our handy installation wizard, you'll be up and running in no time.
Main features :
Support for marine-optimised C-MAP® DISCOVER™X and REVEAL™ X charting, offering a modern, intuitive map presentation and daily updates
High-definition IPS touchscreen with extreme viewing angles, even visible through polarised lenses
Support for high-resolution views of fish and structure with Active Imaging™ technology, CHIRP sounder and SideScan and DownScan Imaging™ features, as well as 1 kW sounder capacity to reach greater depths
Setup wizard for quick start-up and simpler sounder configuration
Full integration with the ability to expand the system with a sounder, autopilot, Simrad® radar and more
Faster authorouting and seamless accessibility
See close and far simultaneously (up to 42 nm) with HALO® radar support, and benefit from lightning-fast updates every second
Keep on course with full Simrad® autopilot integration
Simple, modern interface
Simrad® app integration: Keep your chart data at your fingertips, on the water and on land
Third-party application integration
Wireless connectivity, full Ethernet and NMEA 2000® networking capability
IP video support
Technical features:
SD card storage: 1 MicroSD slot
Ethernet ports: 1 port
NMEA 2000 connectivity: 1 x NMEA 2000 Micro-C port, 1 LEN
Display resolution: 1024 x 600 px
Max power consumption: 11. 5 W (830 mA at 13.8 V)
Supply voltage: 12 V DC (10 - 17 V DC min - max)
Operating temperature range: -15°C to 55°C
Recommended fuse rating: 2A
GPS receiver channels: 32 channels
Waypoints, routes, tracks: 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with upto 12,000 track points.
Screen size: 17.78cm
Viewing angle: 85°
Bluetooth: Bluetooth 4. 0
Supported maps: C-MAP Discover™ X, C-MAP Reveal™ X
Item Wi- Fi connectivity: IEEE 802.11b/g/n
GPS: Internal, 10Hz, WASS, MSAS, EGNOS
Waterproofing: IPx6 and IPx7
Interface: Multi-touch screen
Sounder compatibility: One 9 pin Xsonic 1 kW Sonar port. Single channel CHIRP, 50/200 khz, HDI, Active Imaging
AIS : Receive AIS data over NMEA 2000
Digital switching : Simrad command DDS only on release to market
Dimensions (H x W x D) : No bracket, no suncover: W: 195. 0 mm x H: 123.0 mm x D: 79.5 mm
Weight: 0.8 kg
NSX displays are only compatible with C-MAP Discover™ X and C-MAP Reveal™ X
12' display + Active Imaging sensor
Screen 12' + probe Active Imaging
