Instrumentation Pack — Garmin

Instrumentation pack from the Garmin brand.

Screen and Display

• The GNX Wind and GNX 20 instruments feature a highly readable monochrome LCD screen
• It features a backlit monochrome LCD screen with bonded glass, easy to read.
• 100% customizable user profiles allow you to configure the screen layout according to your preferred settings.
• Screen configurations include over 15 important marine parameters for wind, speed, and navigation.
• GNX 20 Navigation Instrument
  The GNX 20 navigation instrument screen, easy to read, with black digits on a white or colored background, clearly displays depth data, vessel speed, water temperature, as well as over 50 parameters related to marine environment and vessel.

Sounder and Transducer

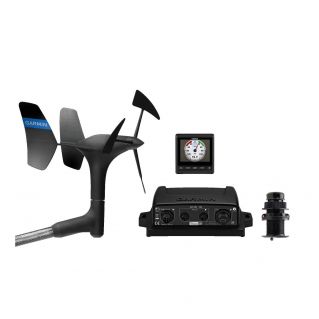

• Includes GNX Wind instruments, gWind™ Wired, GNX™ 20 and Airmar® DST810 transducer
• The gWind Wired probe features a 3-blade propeller and benefits from a dual-keel design
• Wireless connectivity to devices equipped with Bluetooth® technology allows DST810 transducer calibration directly via Airmar's Cast application
• gWind Wired Probe
  The gWind probe features dual-keel technology with a 3-blade propeller that enables more precise measurement of true wind speed in very light breezes, and the dual-keel design offers a more stable true wind angle.
• This multi-sensor probe operates down to 100 m (330 ft) and emits a fast 5 Hz signal to calculate surface speed.
• It operates at 235 kHz frequency and features a fan beam of 10 x 44 degrees.
• Furthermore, wireless connectivity to devices equipped with BLUETOOTH® technology allows DST810 transducer calibration directly via Airmar's Cast application.

Performance

• Advanced speed calibration allows calibration at different heel angles and speeds.

Functions and Technologies

• You can even change the backlight color.
• The 3-blade propeller, unlike cup-style propellers, is always effective.
• 1 Requires an additional heading sensor.

Connectivity and Interfaces

• Simple plug-and-play installation between Nexus® devices, Garmin chartplotters, NMEA 2000® network and USB connectivity
• It also interfaces with the NMEA 2000 network to display two data fields and a digital compass rose alongside apparent wind and true wind data, directional data, vessel speed, etc.

Power and Consumption

• Since it consumes little power, 350 mW during the day without backlight and 400 mW at night with average backlight level, it is particularly suitable for use aboard a sailboat.

Compatibility

• GNX Wind Navigation Instrument
  The GNX Wind provides you with the wind data you need to make informed decisions.
• It can also wirelessly connect to a quatix® 3 connected marine GPS watch via ANT technology to stream wind data directly to your wrist.

Kit Contents

• The intelligent DST810 through-hull transducer provides data on water depth, surface speed, and water temperature. It also detects vessel inclination to generate heel/trim and pitch/roll data.
• Combined with optical reading, this probe provides extreme precision in light wind conditions and also excellent linearity.
• Its bonded glass screen and lens anti-glare coating provide excellent readability day and night, with high-contrast digits measuring up to 36 mm.
• Airmar DST810 Intelligent Through-Hull Transducer
  The DST810 transducer combines depth, speed, and temperature data with vessel inclination data to provide heel/trim and pitch/roll information to the NMEA 2000® network and GNX 20 instrument.

Usage Tips

Have it installed by a professional to ensure NMEA network consistency and sensor calibration.
