Description

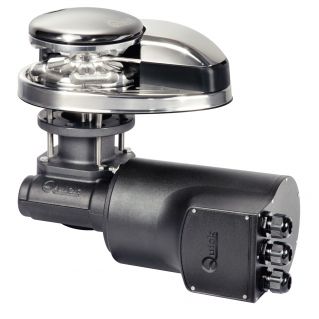

The Quick Prince windlasses have an AISI 316 stainless steel base with integrated hawse ladder. They are equipped with a chain counter sensor. Supplied with relay box.
Chain standard: ISO 4565
3-year warranty.
Chain standard: ISO 4565
3-year warranty.
Technical characteristics
| Version | DC |
|---|---|
| Gypsy | 10 mm |
| Hauling speed | 16.3 m/min |
| Chain diameter | 10 mm |
| Bridge thickness | 30 - 50 mm |
| Lifting current | 155 A |
| Motor power | 1500 W |
| Power | 1500 - 12 V |
| Voltage | 12 V |
| Drum | without |
| Weight | 20,4 kg |
| Model | Prince DP3 - 1500W |
| Boat length | 12 - 15 m |
| Maximum lift force | 470 kg |
| Lift force | 160 kg |
| Pull-out force | 1100 kg |
| Product Brand | Quick |
